Dimensions

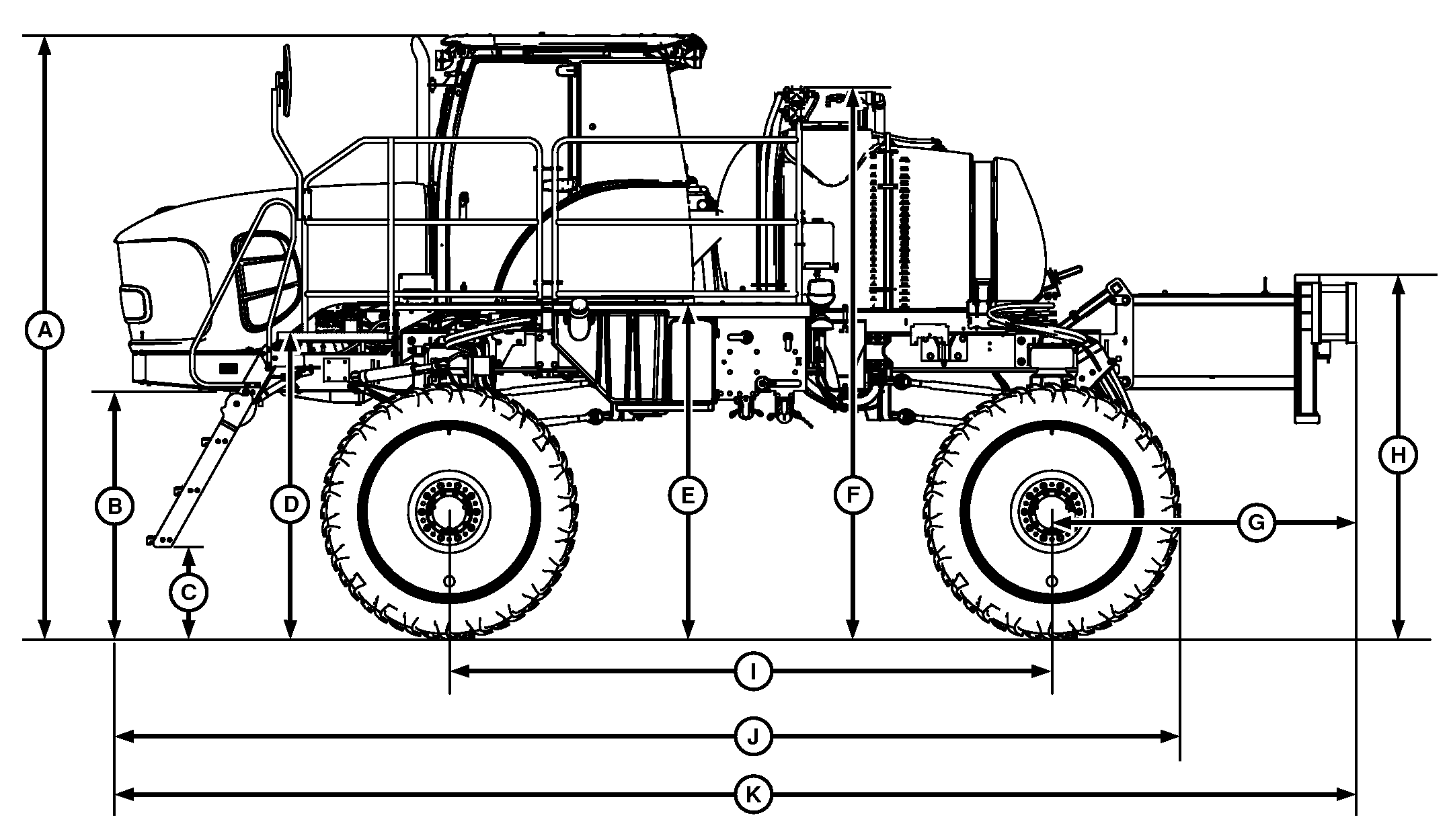

N83544-UN-12MAR09

NOTE: Spray boom structure not shown to provide clarity of other machine components.

Dimensions1
Item	Description	Measure
A	Cab Height Air Springs, Inflated	3686 mm (145.1 in)
	Cab Height Air Springs, Deflated	3600 mm (141.7 in)
B	Underframe Clearance	1299 mm (51.1 in)
C	Bottom Of Ladder	536 mm (21.1 in)
D	First Platform Height	1802 mm (71 in
E	Top Platform	2028 mm (79.8 in)
F	Top of Eductor Fittings	3357 mm (132.2 in)
G	Tire Center to Rear Most Boom Point2	2262 mm (89.1 in)
H	Highest Point of Boom3	3010 mm (118.5 in)
I	Wheelbase	3691 mm (145.3 in)
J	Front of Machine-to-Rear of Rear Tire	5746 mm (226.2 in)
K	Front of Machine-to-Rearmost Boom Point	7692 mm (302.8 in)
(Not Shown)	Total Transport Length with Spray Boom Folded4	8.31 m (27.25 ft)

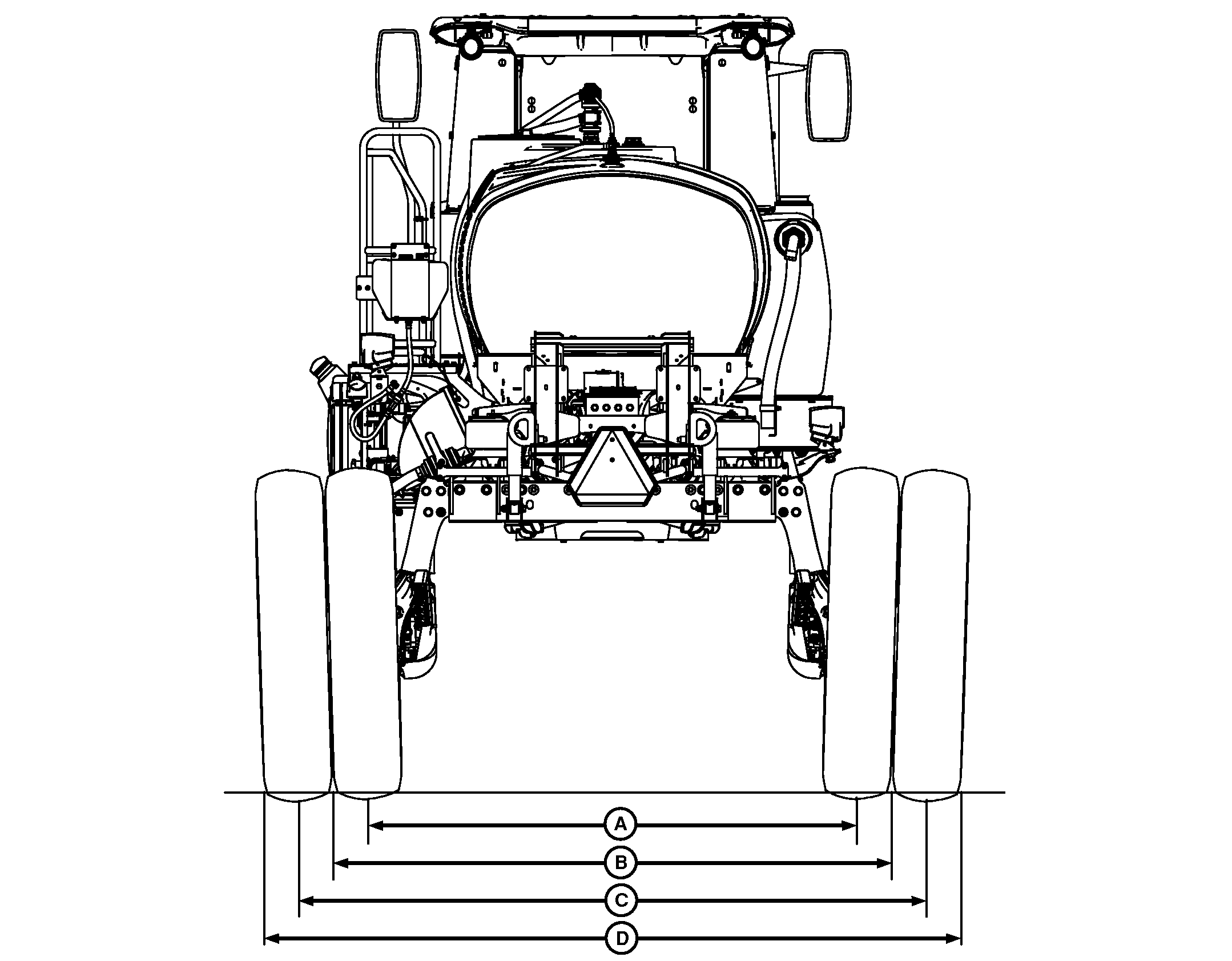

N83545-UN-20DEC11

NOTE: Spray boom structure not shown to provide clarity of other machine components.

Dimensions
Item	Description	Measure
A	Narrowest Tread Setting	2286 mm (90 in)
B	Widest Point of Wheels at Narrowest Setting (Planetary Hub)5	2819 mm (111 in)
C	Widest Tread Setting	3048 mm (120 in)
D	Widest Point of Wheels at Widest Setting (Planetary Hub)5	3541 mm (141 in)
(Not Shown)	Total Transport Width with Boom Folded in Transport Position4	3190 mm (125.6 in)
