Key Switch

CAUTION: Sound horn before starting engine to clear people away from the machine.

To avoid the possibility of personnel injury or death, start ONLY from the operator seat. Do not start engine by shorting across starter terminals. Machine starts in gear if normal circuit is bypassed.

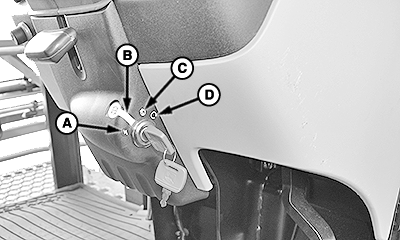

Key switch is on the right-hand side of the steering column and has four positions:

BM017244-UN-03MAR17

A - Accessories Position

B - Off Position

C - Accessory/Run Position

D - Start Position

• Accessory position (A) allows accessories such as radio and windshield wiper to operate.
• Off position (B) shuts off engine and all accessory functions.
• Accessory/Run position (C) allows all accessories to operate and engine to run once it has been started.
• Start position (D) is a momentary switch position that starts the engine. Once the engine starts and the switch is released, it returns to accessory/run position.
