Fill Rinse Tank

IMPORTANT: Damage to rinse tank and surrounding structure can occur when filling at a high rate and the rinse tank cap is not removed. Remove the rinse tank cap when filling at high rates to avoid damage.

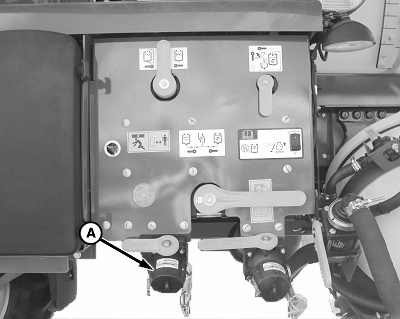

  1. Remove filler cap (A).

    N98325
    N98325-UN-04MAY12

    A - Filler Cap


  2. Connect the fill hose, and open the fill valve. Fill the rinse tank to the desired level.

  3. Close valve and remove the fill hose.

  4. Reinstall the filler cap (A).

OU90500,00004AF-19-20170411
