Use Rinse System (Rinse Solution Pump, Spray Boom, and Flowmeter Only)

CAUTION: Spray system can contain hazardous material which can cause serious injury or death to you or others. Wear protective clothing, eyewear, and gloves. Use rinse system in an area where people, animals, vegetation, and water supply, and so on, cannot be contaminated.

NOTE: Perform the following procedure to rinse only the pump, spray boom, and flowmeter.

During a spray boom rinse cycle, the pump bleed line adds some fresh water to the solution tank. It can dilute the product and/or extra product can stand in the tank.

1. Turn the suction valve handle (A) to Rinse Tank position.

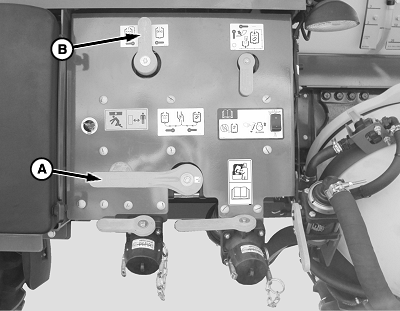

   N98442-UN-07MAY12

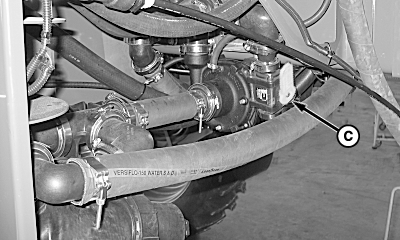

   N82354-UN-21NOV08

   A - Suction Valve Handle

   B - Pressure Bypass/Rinse Valve Handle

   C - Agitation Valve Handle

---




2. Turn the pressure bypass/rinse valve handle (B) to Spray position.

3. Turn the agitation valve handle (C) to Close position.

4. Turn on the spray system and spray rinse water through spray boom assembly.
