Safeguard Alternator and Regulator

1.
   N85260-UN-09JUN09

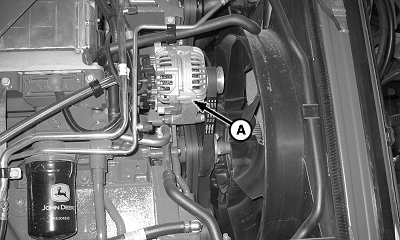

   A - Alternator

   Always disconnect battery ground strap when working with the alternator (A) or regulator.

---




2. Never attempt to polarize alternator to regulator.

3. Never ground the alternator field terminal or field circuit.

4. Never connect or disconnect alternator or regulator wires with battery connected or alternator operating.
