Adjust the Headlights

With testing device

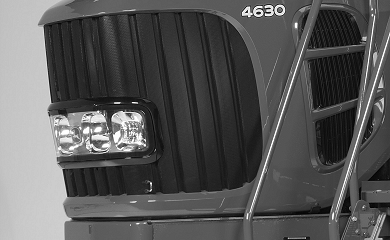

N85262-UN-09JUN09

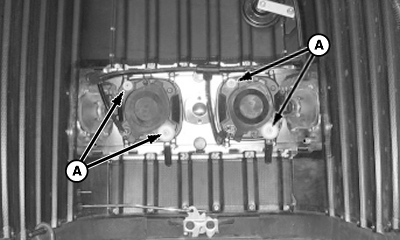

N85259-UN-09JUN09

To adjust headlights, use a commercial headlight testing device with optical lens system. Test each light individually. Make the required corrections by turning adjusting screws (A).

Without testing device

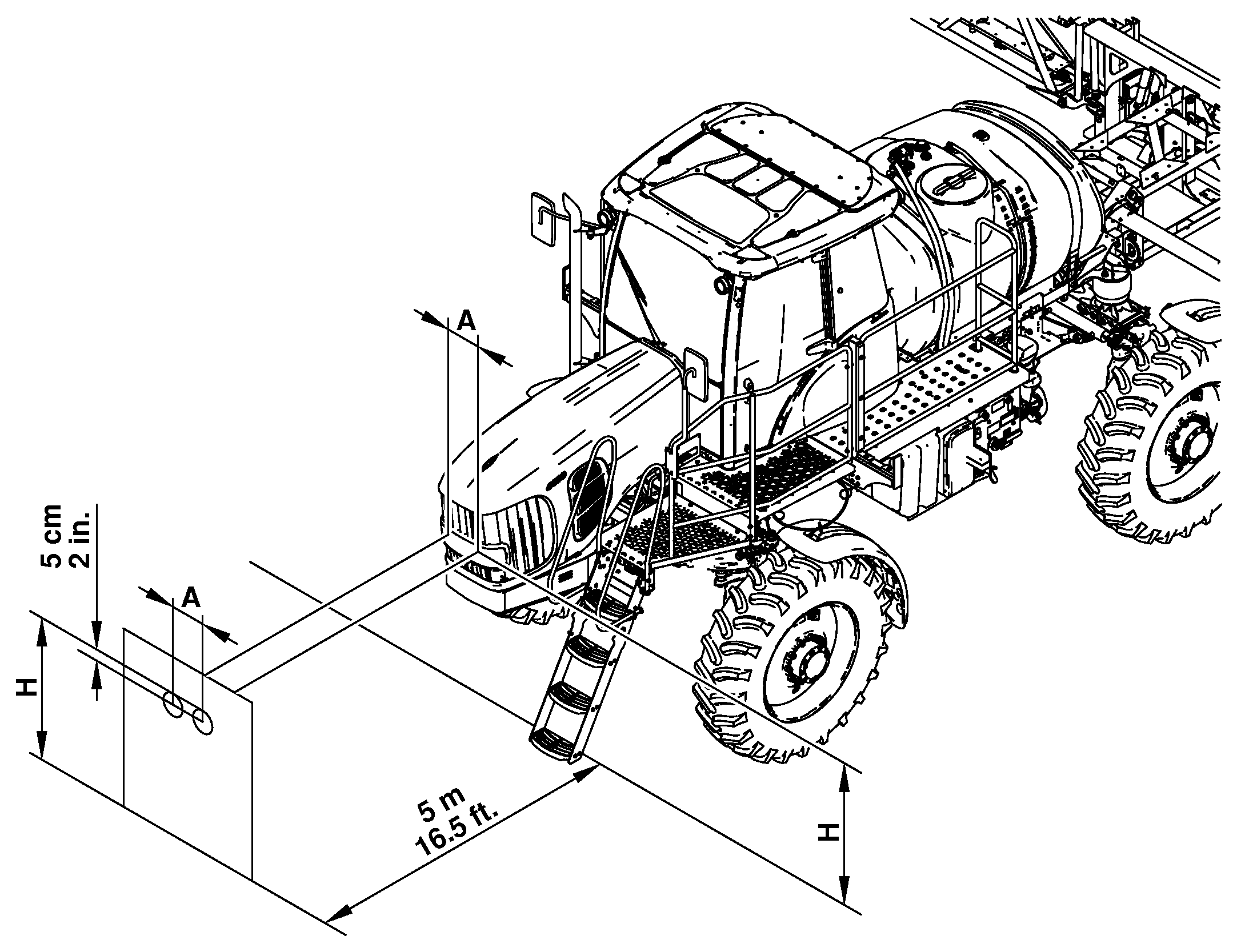

N85294-UN-12JUN09

Park sprayer on a level surface 5 m (16.5 ft) from a vertical wall.

Using the adjusting screws, adjust each headlight so that the bright/dark border forms a horizontal line 5 cm (2 in.) lower than headlight height (H).

Switch to full beam. Align the lights sideways so that the distance between the center of the light beams on the wall is the same as the distance (A) between the lights.
