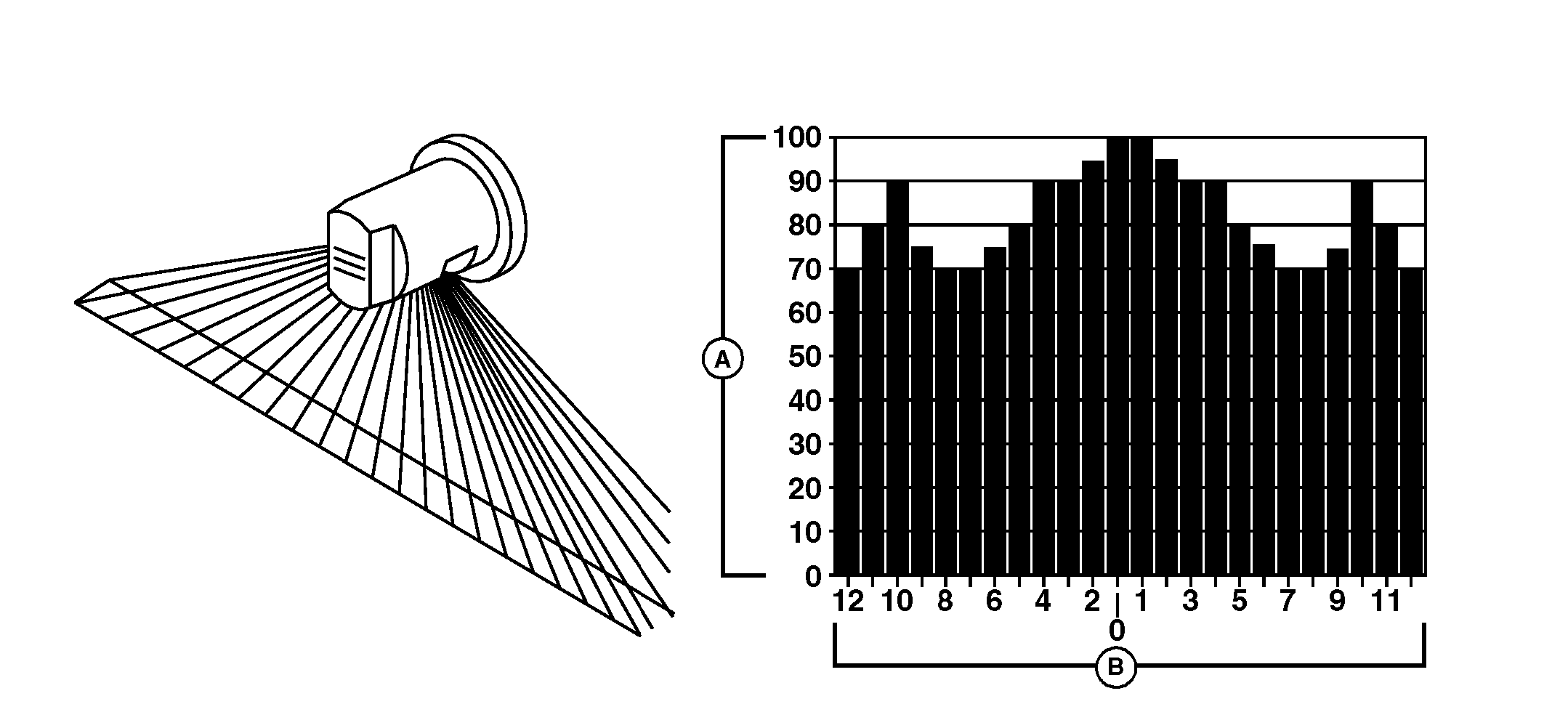

Flood Nozzle

N69197-UN-02MAR05

A - Coverage %

B - Distribution Profile

Flood nozzles are used when large quantities of solution must be applied and a quality distribution pattern is not critical. They have an extremely large orifice, which makes them very difficult to clog. They operate at very low pressures and have a wide spray pattern. Often these nozzles are spaced 1016 mm (40 in.) apart on the boom.
