Check Seat Belts

N60684-UN-30JUL02

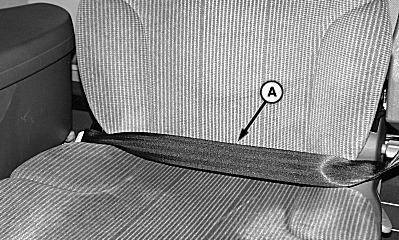

Operator’s Seat Belt

N60924-UN-20SEP02

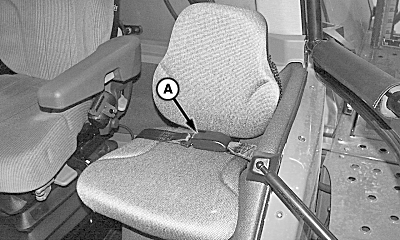

Instructional Seat Belt (If Equipped)

A - Seat Belts

Replace entire seat belts (A) if mounting hardware, buckle, belt, or retractor show signs of damage.

Check the seat belts and mounting hardware at least once a year. Look for signs of loose hardware or belt damage, such as cuts, fraying, extreme or unusual wear, discoloration, or abrasion. Replace only with replacement parts approved for your machine. See your John Deere dealer.
