AutoTrac™ Assisted Steering System (If Equipped)

BM017213-UN-11JAN17

BM011043-UN-01AUG16

GreenStar™ 3 2630 Display

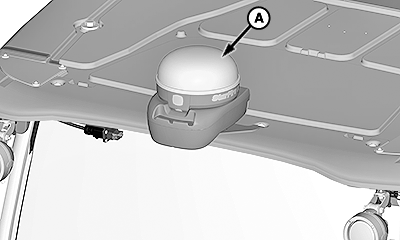

A - StarFire™ Receiver

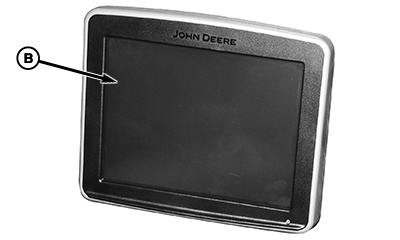

B - GreenStar™ 2630 Display

NOTE: For detailed instructions, refer to AutoTrac™ Operator’s Manual.

• AutoTrac™ system utilizes StarFire™ receiver (A) and GreenStar™ display (B) to assist operator in steering the machine.
• AutoTrac™ is a straight-line guidance system. Operator must turn vehicle at the end of each pass and to go around any field obstacles. Steering control is obtained by turning the steering wheel.

IMPORTANT: The AutoTrac™ stops if the machine is in Park position, operator is not present on the operator’s seat for longer than 7 s, or ground speed is below 0.3 km/h (0.186 mph).

IMPORTANT: If the operator leaves the operator’s seat, a message appears on the GreenStar™ display and an audible alarm sounds.
