Convenience Outlet

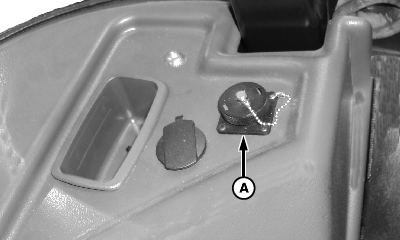

To connect auxiliary equipment, use the convenience outlet (A).

Item	Measurement	Specification
Convenience Outlet	Voltage	12 V

N98329-UN-04MAY12

N42173QD-UN-30DEC96

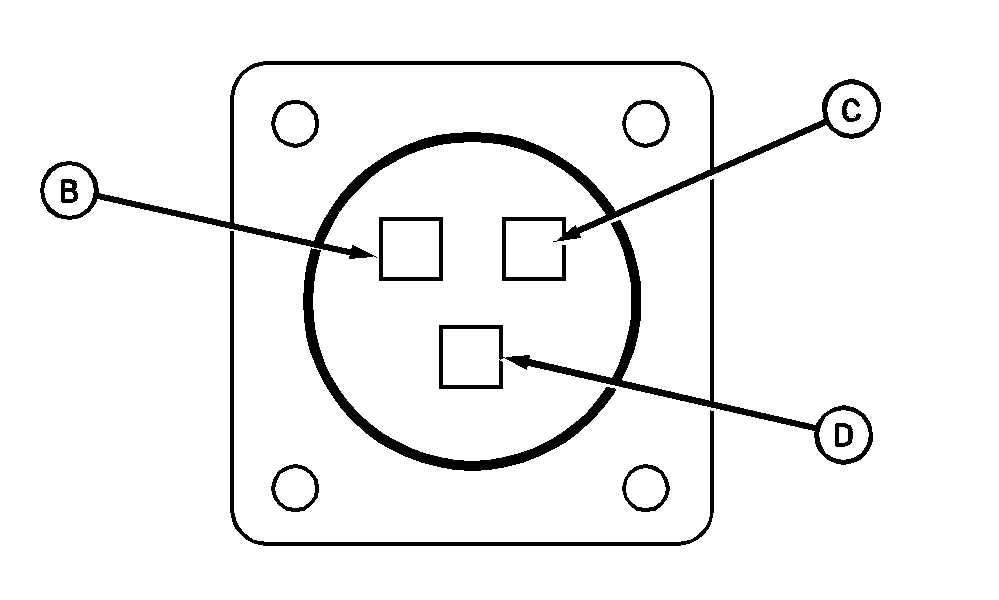

A - Convenience Outlet

B - Switched Power Circuit

C - Battery Circuit

D - Ground

Use auxiliary equipment installation instructions or see your John Deere dealer.

NOTE: Each outlet is protected by a fuse.
