Check Engine Oil Level

IMPORTANT: Never operate the engine if the oil level is above the maximum mark (E) or below the minimum mark (D) on the oil dipstick (A).

NOTE: Check oil level preferably in the morning before starting the engine.

1. Park the machine on a level ground.

2. Shut off the engine.

3. Remove the oil dipstick (A).

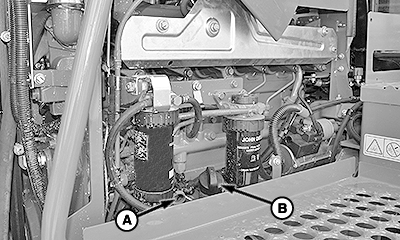

   BM017250-UN-06MAR17


   BM011046-UN-05AUG16

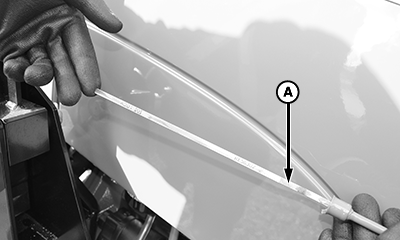

   Correct Position to Check the Oil Level


   BM011060-UN-10NOV16

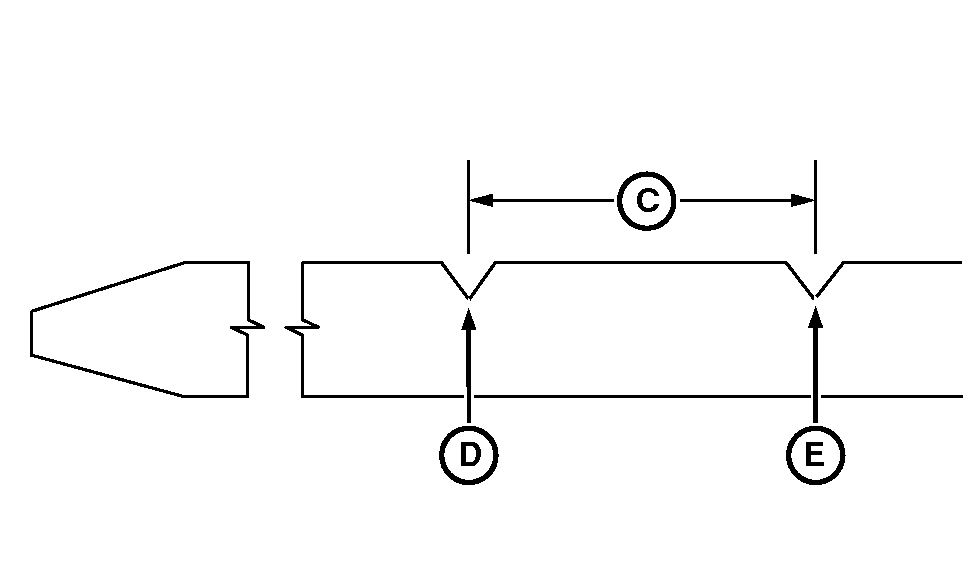

   Level Marks at the Oil Dipstick

   A - Oil Dipstick

   B - Filler Neck

   C - Correct Level Region

   D - Minimum Mark

   E - Maximum Mark

---




4. Clean the oil dipstick (A) with a clean cloth.

5. Insert the oil dipstick (A) into the engine and remove it again.

   NOTE: Make sure to insert the oil dipstick (A) all the way in.

6. Check the oil level according to the following:

   1. Hold the oil dipstick (A) horizontally.

   2. The oil level should be on the region (C) between the minimum mark (D) and the maximum mark (E).

7. If the oil level is below the minimum mark (D), add the specified engine oil via filler neck (B).

   NOTE: See the correct oil in Fuels, Lubricants, and Coolant Section.
