Drain the Fuel Filters

NOTE: When water is detected in the fuel system, a diagnostic trouble code is shown on the SprayStar™ System display.

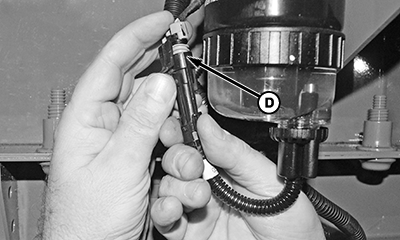

1. Disconnect the water-in-fuel sensor connector (D).


   N82367-UN-27MAY09


   BM000694-UN-24MAY16

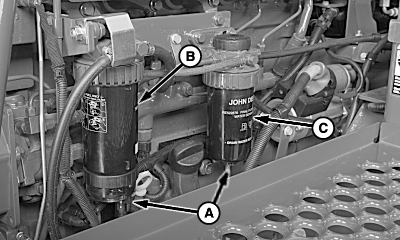

   A - Drain Valves

   B - Primary Fuel Filter

   C - Secondary Fuel Filter

   D - Water-in-Fuel Sensor Connector

---




2. Loosen the drain valves (A) from primary (B) and secondary (C) fuel filters. Retighten when clean fuel starts to come out.

3. Connect the water-in-fuel sensor connector (D).

4. Bleed the fuel system. (See Service—As Required Section.)
