Check Air Springs (If Automatic Air Spring Leveling System is not Equipped)

CAUTION: Air spring can explode if over inflated causing serious injury or death to you or others. When adjusting suspension assemblies, do not exceed 689 kPa (6.89 bar) (100 psi). Keep hands and body away from suspension linkage.

NOTE: It is normal for air springs to lose air after a few days of use, especially in rough terrain.

1. Park machine on a level ground with the solution tank empty.

2. Fold the spray booms.

3. Inspect the distance (A) between the air spring mounting plates. The distance should be according to specification:

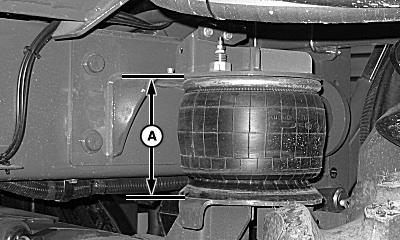

   N82612-UN-26JAN09

   Left Rear Air Spring Assembly Shown

   A - Distance Between Air Spring Mounting Plates

   Distance Between Air Spring Mounting Plates
   	Solution Tank Empty	Solution Tank Full
   Front Air Springs	175 mm (7 in)	165 mm (6.5 in)
   Rear Air Springs	240 mm (9.5 in)	185 mm (7.25 in)

---




4. If necessary, inflate the air springs.
