Lubricate Front Suspension

IMPORTANT: Use of non-recommended greases can result in premature wear of the suspension components. See the correct grease in Fuels, Lubricants, and Coolant Section.

NOTE: If necessary, replace damaged grease fittings.

  1. Park the machine on a level ground.

  2. Clean all grease fittings (A).

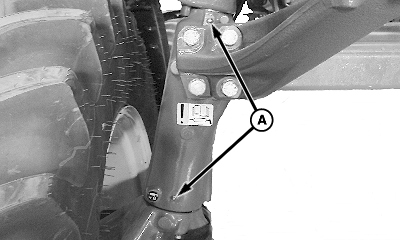

    N98335
    N98335-UN-04MAY12

    Right-Hand Side Front Suspension

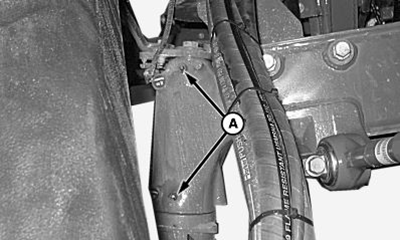

    BM017253
    BM017253-UN-06MAR17

    Left-Hand Side Front Suspension

    A - Grease Fittings


  3. Apply grease on all grease fittings (A).

TS95756,000047B-19-20170410
