Access to Fuses and Relays

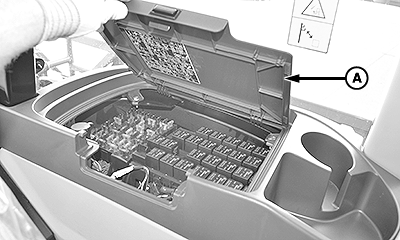

The fuse panel and the load center relays are inside the cab, in the right-hand side of the operator’s seat.

To access the fuses and relays, remove the cover (A).

BM017256-UN-07MAR17

A - Cover

Power Link Box

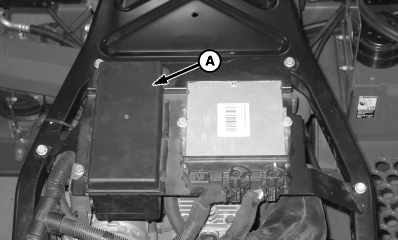

The Power Link Box is in the engine compartment, next to the Engine Control Unit (ECU). To access the fuses and relays, remove the cover (A).

N85256-UN-08JUN09

A - Cover
