Service—Daily or Every 10 Hours

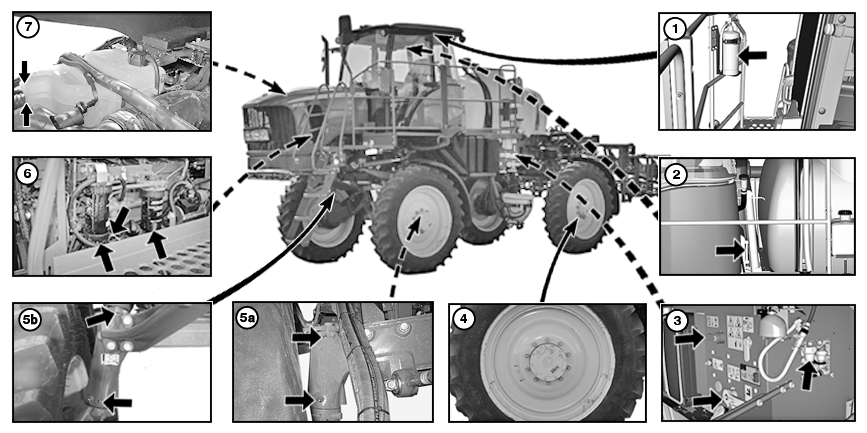

BM017278-UN-22MAR17

1. Check the general-purpose fire extinguisher.

2. Check the hydrostatic/hydraulic oil level.

3. Clean eductor filter and solution strainers.

4. Check tires condition.

5. Lubricate front suspension:

   1. Left-hand side front suspension.

   2. Right-hand side front suspension.

6. Check the engine oil level and drain the fuel filters.

7. Check the coolant level.

8. Check and inflate, if necessary, the air springs.

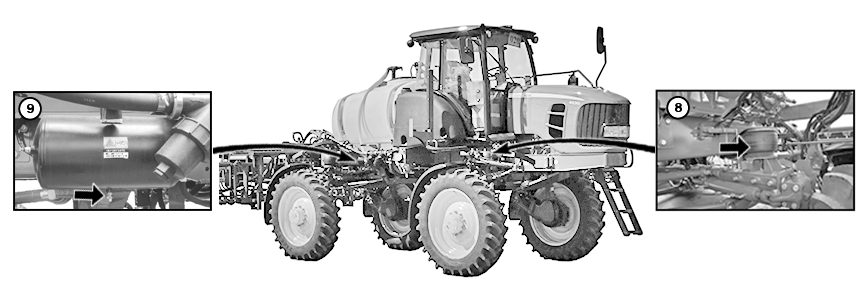

   BM017279-UN-13APR17

---




9. Drain moisture from the on-board air tank.

10. Rinse solution pump, spray boom, and flowmeter.

11. Lubricate spray boom lift arm pivots.
