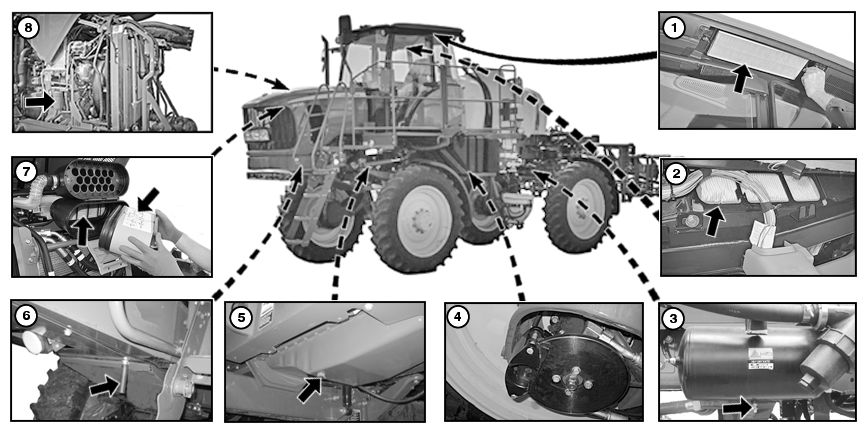

Service—Yearly

BM017275
BM017275-UN-21MAR17

  1. Replace fresh air filters.

  2. Replace cab air recirculation filter.

  3. Replace air drier cartridge.

  4. Check service brake components.

  5. Change the engine oil.

  6. Clean engine vent tube.

  7. Replace primary and secondary engine air filters.

  8. Replace engine oil filter.

  9. Test coolant. See your John Deere dealer.

  10. Check front axle toe-in.

  11. Check the hydrostatic drive pump isolators.

  12. Check seat belts.

  13. Clean sprayer and coat exposed surfaces.

TS95756,000048E-19-20170321
