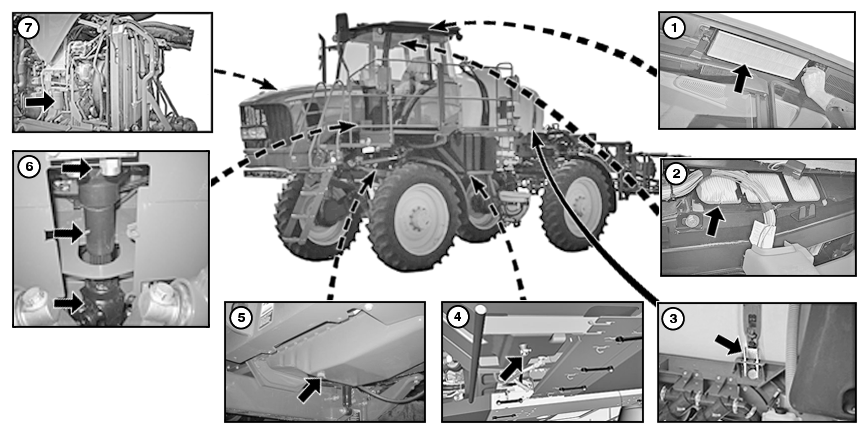

Service—Every 250 Hours

BM017273
BM017273-UN-21MAR17

  1. Replace fresh air filters.

  2. Replace cab air recirculation filter.

  3. Check solution tank straps.

  4. Drain water and sediment from the fuel tank.

  5. Change the engine oil.

  6. Lubricate the engine driveshaft.

  7. Replace the engine oil filter.

  8. Rotate tires.

  9. Check shim gap on axle tread adjust.

IMPORTANT: If John Deere Plus-50™ II oil is used, the engine oil and engine oil filter interval can be extended from 250 to 500 hours. Comply with all instructions described in the Fuels, Lubricants, and Coolant Section.

Plus-50 is a trademark of Deere & Company

TS95756,0000490-19-20181018
