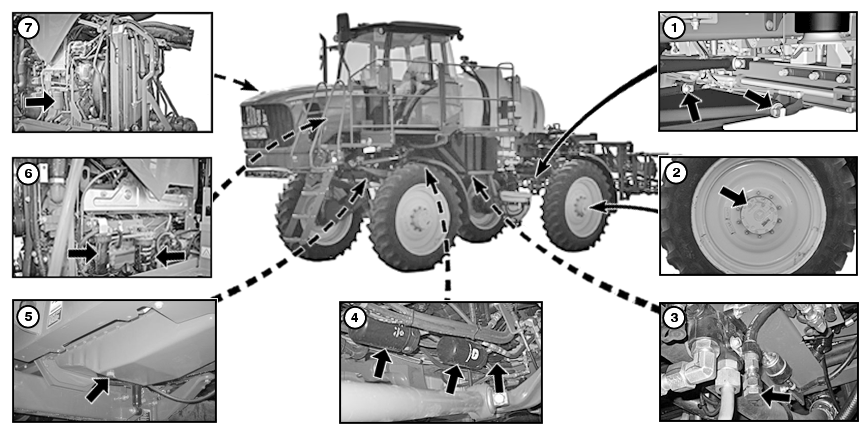

Service—Every 500 Hours

BM017272-UN-21MAR17

1. Check the suspension rod screws and visually inspect the suspension bushings.

2. Change the planetary hub oil.

3. Change the hydrostatic/hydraulic system oil.

4. Replace hydrostatic and hydraulic oil filters.

5. Change the engine oil.

6. Replace fuel filters.

7. Replace the engine oil filter.

IMPORTANT: If John Deere Plus-50™ II oil is used, the engine oil and engine oil filter interval can be extended from 250 to 500 hours. Comply with all instructions described in the Fuels, Lubricants, and Coolant Section.
