Power Link Box

IMPORTANT: To prevent damage to the electrical system, never use a fuse with a rating higher than the one already installed.

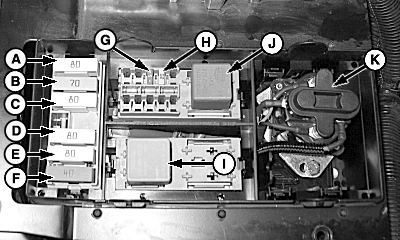

N85257-UN-08JUN09

A - F101 (80 A)

B - F105, Air Heater (70 A)

C - F106 (80 A)

D - F103 (80 A)

E - F107 (80 A)

F - F108 (40 A)

G - F102, Fuel Pump (5 A)

H - F104, ECU Control Unit (20 A)

I - K44, Fuel Pump Relay (40 A)

J - K46, Air Heater Relay (70 A)

K - K45, Start Relay
