Replace Engine Fan Belt

1. Park machine and shut off the engine.

2. Remove the ignition key from the key switch.

3. Access the engine compartment. (See Access to Engine Compartment in Access to Service Points section.)

4. Disconnect the battery negative cable.

5. Remove the alternator belt (B):

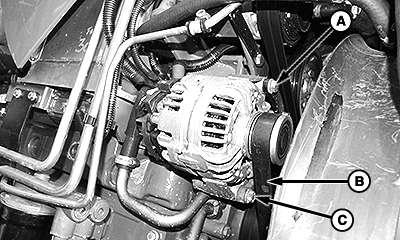

   BM011229-UN-15NOV16

   A - Screw

   B - Alternator Belt

   C - Screw

   1. Loosen the screw (C).

   2. Remove the screw (A).

   3. Relieve the tension on the alternator belt (B).

   4. Remove the alternator belt (B).

---




6. Turn the screw (C) clockwise until the two holes (A) and (B) are aligned.


   BM017258-UN-08MAR17

   A - Idler Sprocket Hole

   B - Idler Sprocket Hole

   C - Screw

---




7. Insert a metal pin into the two aligned holes.

8. Remove the old engine fan belt from pulleys by cutting it free.

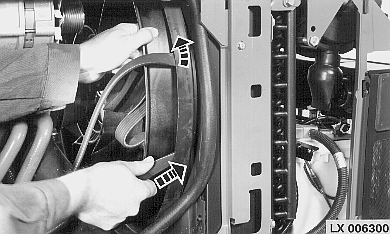

9. Fold over the new engine fan belt and slip it between the fan and fan shroud.


   LX006300-UN-13SEP94

   CAUTION: Keep hands away from the exposed fan blades. Blades have sharp edges and can result in personal injury.

---




10. Turn the fan as the belt is installed.

11. Install the new engine fan belt.

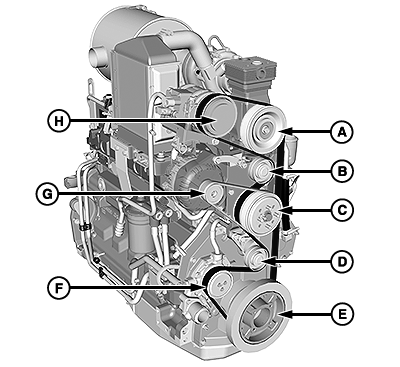

    BM017265-UN-15MAR17

    A - Air Compressor

    B - Positioning Wheel

    C - Fan

    D - Automatic Belt Tensioner

    E - Crankshaft

    F - Water Pump

    G - Alternator

    H - Air Conditioner Compressor

---




12. Remove the metal pin from the automatic belt tensioner.

13. Install the alternator belt (B):


    BM011229-UN-15NOV16

    A - Screw

    B - Alternator Belt

    1. Install the alternator belt (B).

    2. Pull the alternator and install the screw (A).

    3. Tighten the screws (A) and (C) to specification:

       Item	Measurement	Specification
       Alternator Screws	Torque	50 N·m (37 lb·ft)

---
