Check Solution Tank Straps

1. Fill the solution tank.

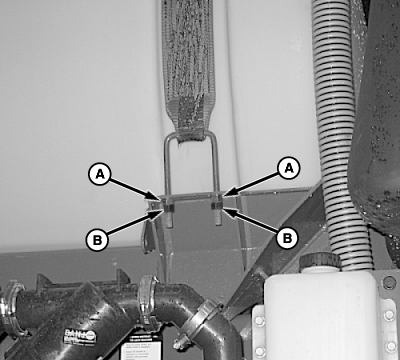

   N84404-UN-27APR09

   A - Adjustment Nut (2 Used)

   B - Lock Nut

---




2. Check the solution tank straps for tightness.

3. If the strap is loose, loosen the lock nuts (B).

4. Tighten the adjustment nuts (A) until straps are snug, then give two additional turns.

5. Tighten the lock nuts (B).
