Check the Hydrostatic Drive Pump Isolators

Inspect the three hydro isolators (A) for loose, damaged, or missing bushings. There are two isolators at the front of the hydrostatic pumps and one at the rear.

N83541-UN-25JUN09

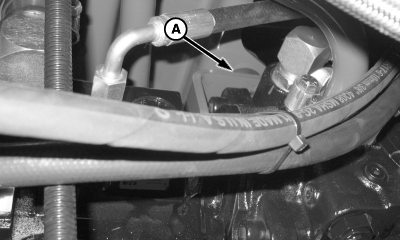

A - Hydrostatic Drive Pump Isolators

NOTE: See how access the hydrostatic drive pump isolators in Access to Service Points Section.
