Lubricate Steering Cylinder Ball Joints

IMPORTANT: Use of greases that are not recommended can result in premature wear of the suspension components.

NOTE: See the correct grease in Fuels, Lubricants, and Coolant Section.

  1. Park the machine on level ground.

  2. Clean the grease fittings (A).

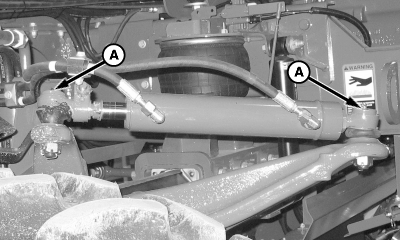

    N83534
    N83534-UN-29JUN09

    A - Grease Fittings


  3. Apply grease on the grease fittings (A).

TS95756,00004AF-19-20170310
