Lubricate Engine Driveshaft

IMPORTANT: Use of non-recommended greases can result in premature wear of the components. See the correct grease in Fuels, Lubricants, and Coolant Section.

  1. Park the machine on level ground.

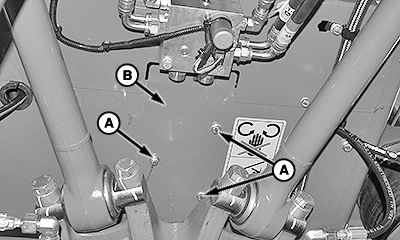

  2. Remove the screws (A) and remove the shield (B).

    BM017260
    BM017260-UN-13MAR17

    N85430
    N85430-UN-25JUN09

    A - Screws

    B - Shield

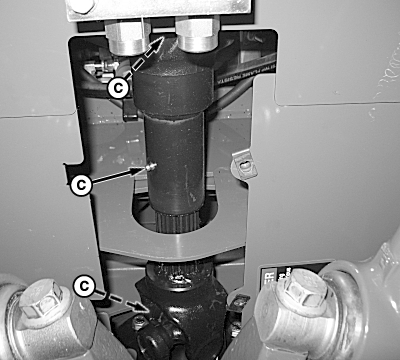

    C - Grease Fitting (3 used)


  3. Lubricate grease fittings (C).

TS95756,00004B0-19-20170313
