Change the Hydrostatic/Hydraulic System Oil

NOTE: A better draining of oil and debris is obtained when the oil is warm.

1. Park the machine on a level ground.

2. Place the spray booms in the rests and retract all hydraulic cylinders including tread adjust cylinders.

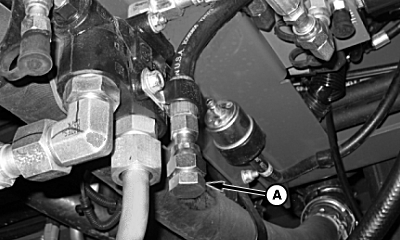

   N84879-UN-09JUN09

   A - Drain Plug

---




3. Remove the drain plug (A) from the drain hose. Drain the oil into a suitable container.

4. Install the drain plug (A).

5. Add the specified oil through the filler neck (A) until level in sight glass (B) is one-half to three-quarters full. (See the correct oil in Hydrostatic/Hydraulic Drive Oil in Fuels, Lubricants, and Coolants Section.)

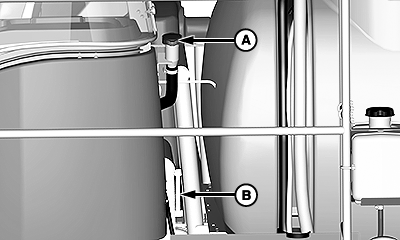

   BM017251-UN-06MAR17

   A - Filler Neck

   B - Sight Glass

---
