Clean Radiator and Air Conditioner Condenser

CAUTION: Radiator parts become hot during operation. Only clean the radiator, the oil cooler, and the air conditioner condenser when cool enough to touch with bare hands.

1. Park machine and shut off the engine.

2. Remove the ignition key from the key switch.

3. Access the engine compartment. (See Access to Engine Compartment in Access to Service Points section.)

4. Pull the radiator screen (A) out to the side. Remove any contamination.

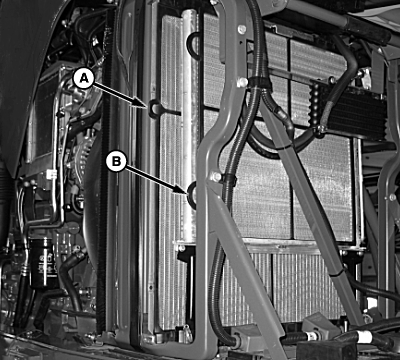

   N83102-UN-17JUN09

   A - Radiator Screen

   B - Air Conditioner Condenser Screen

---




5. Remove air conditioner condenser screen (B). Remove any contamination.

6. Disconnect spring (A) on both machine sides and pull the air conditioner condenser (B) out to side.

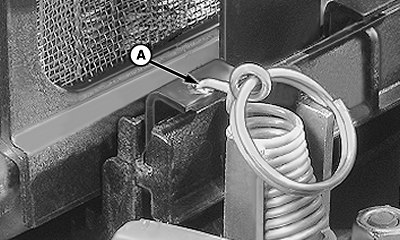

   N83103-UN-10FEB09

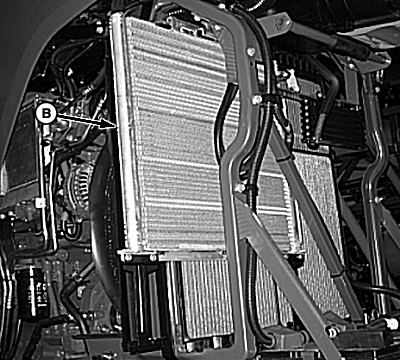

   N84885-UN-17JUN09

   A - Spring (2 used)

   B - Air Conditioner Condenser

---




7. Thoroughly clean, blow air through coolers and air conditioner condenser from back to front.

8. Reinstall air conditioner condenser, radiator screen, and air conditioner condenser screen.


   N83105-UN-10FEB09


   N83106-UN-10FEB09

   A - Lower Guide Rail

   B - Upper Guide Rail

   NOTE: Make sure that the air conditioner condenser engages properly in the lower (B) and upper (C) guide rails respectively. Also make sure that the condenser is centered in relation to the radiator.

---




9. Reconnect springs on both sides.
