Access to Hydrostatic Drive Pump Isolators

Remove the cab floor mat and access the front hydrostatic drive pump isolators (A) from the openings in the cab floor.

BM017283
BM017283-UN-22MAR17

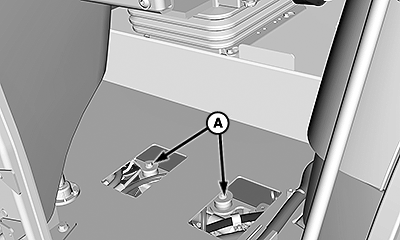

Front Hydrostatic Drive Pump Isolators

BM017284
BM017284-UN-22MAR17

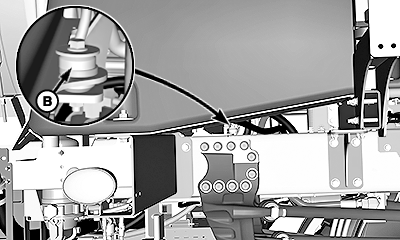

Rear Hydrostatic Drive Pump Isolator

A - Front Hydrostatic Drive Pump Isolators (2 used)

B - Rear Hydrostatic Drive Pump Isolator (1 used)

Access the rear hydrostatic drive pump isolator from under the machine.

TS95756,00004C5-19-20170322
