Automatic Air Spring Leveling System (If Equipped)
N85928-UN-21JUL09

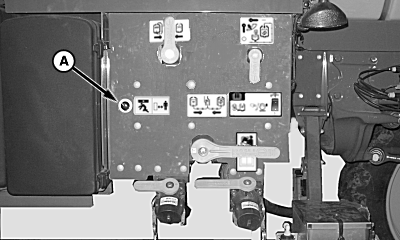

A - Dump Control Valve
The automatic air spring leveling system adjust the height of the machine during the operation. It improves the performance and the ride quality of the sprayer, regardless of the amount of solution in the tank.The air is provided from the on-board air tank, and the air drier cartridge protects the system components from moisture contamination.
The height control valves are at the top of each suspension strut tower. With the help of the mechanical linkage between the machine frame and the wheel assembly, the height control valves remove air or add air to the air springs.
Turn on the dump control valve (A) to activate this system.
CAUTION: The machine can lower quickly when the dump control
valve is activated. Clear the area around the machine before activating
valve.
|
