Check Solution Tank Hoses

IMPORTANT: To prevent pump damage from dry run, vent line must be routed correctly and be free of obstructions.

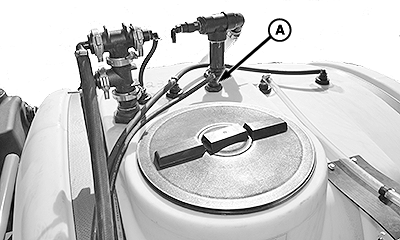

  1. Check if vent line (A) is correctly routed until the pump, and if it is not damage.

    BM017305
    BM017305-UN-10APR17

    A - Vent Line


  2. Verify continuous stream of solution discharges from the vent line into the tank during pump operation. Best time to view discharge stream is with tank half full. Clean or replace the hose as needed.

  3. Verify if all solution tank hoses and fittings are tight and in good condition.

TS95756,00004E0-19-20170410
