Flat Fan Nozzle

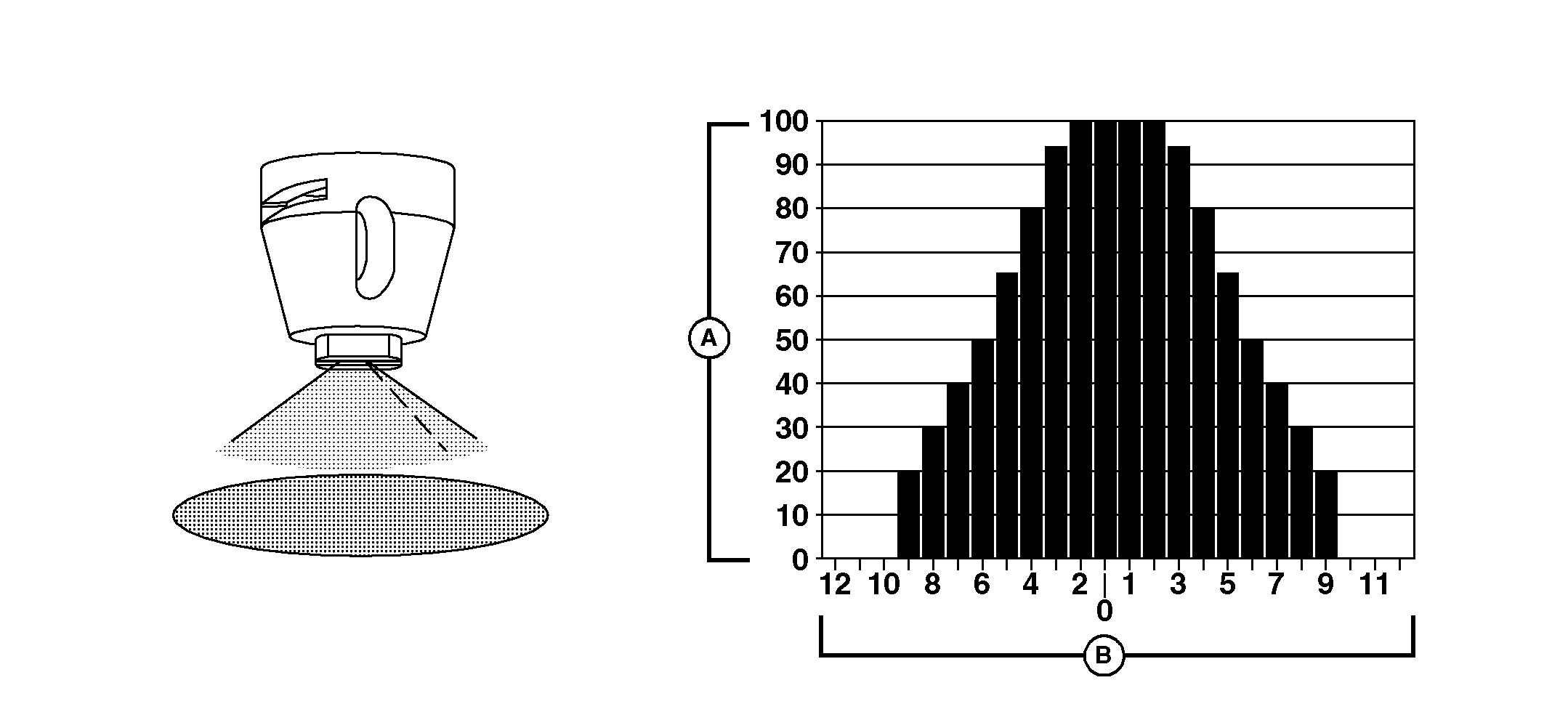

N69194-UN-03MAR05

A - Coverage %

B - Distribution Profile

Flat fan nozzles are an ideal choice for broadcast spraying when it is desirable to have an uniform amount of chemical applied across the entire width of the spray boom.

Flat fan nozzles apply solution in an elliptical pattern.

To achieve uniform application, it is necessary to overlap these nozzles. Usually this is done with nozzles spaced 508 mm (20 in) apart and positioned 457—559 mm (18—22 in) above the target surface. Most flat fan nozzles are designed to operate in the 207—414 kPa (2—4 bar) (30—60 psi) range.
