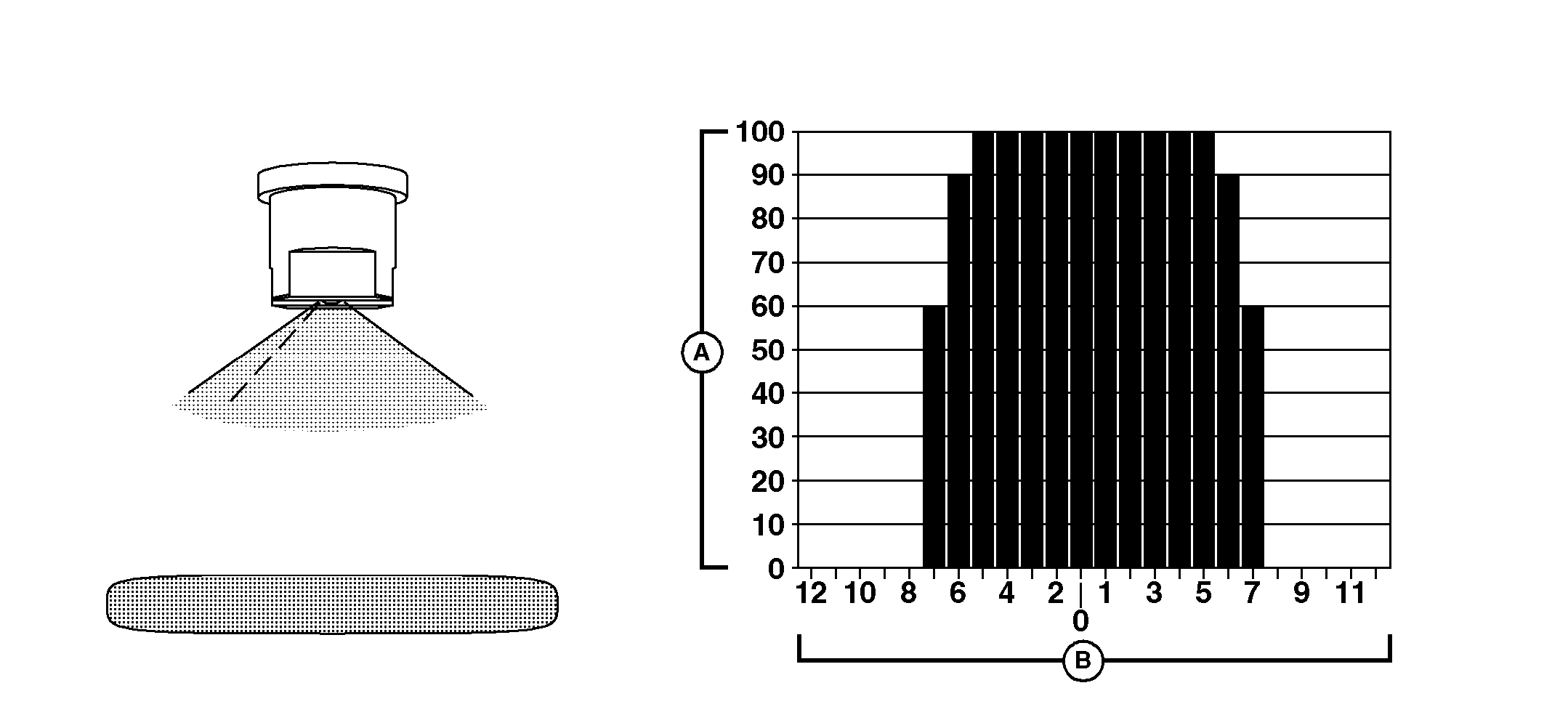

Even Spray Nozzle

N69195-UN-02MAR05

A - Coverage %

B - Distribution Profile

Even spray nozzles are used for banding applications as they apply a uniform amount of chemical over almost the entire width of the spray pattern.

Simply by adjusting the nozzle height above the target surface, the operator can control the width of the spray band.

NOTE: Do not use even spray nozzles for broadcast spraying, because it is difficult to adjust spray boom height to eliminate overlap or skips.
