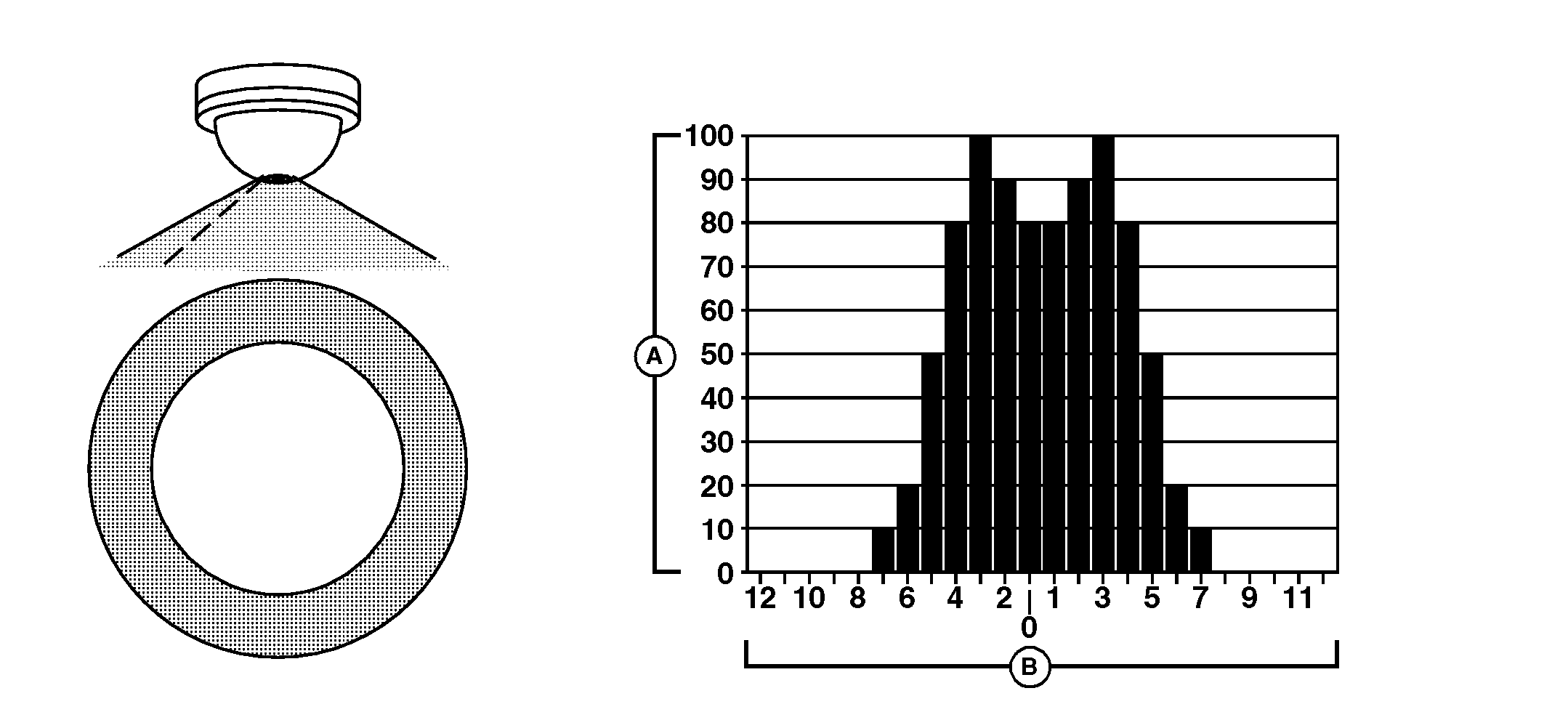

Hollow Conical Nozzle

N69196-UN-02MAR05

A - Coverage %

B - Distribution Profile

Hollow conical nozzles are used for banding applications, and for spray in a hollow circular pattern. They can also be used for broadcast applications, but the efficiency is not the same as with the flat fan nozzles.

The spray from hollow conical nozzles tends to swirl down into the plants. So the chemical makes contact farther into the crop canopy and sometimes on the underside of leaves too.

Hollow conical nozzles also operate in a much wider pressure range 207—2586 kPa (2—26 bar) (30—375 psi) than flat fan nozzles and even spray nozzles.
