Solution Strainers

Strainers (A—C) are used to help keep dirt and debris from entering and damaging the solution pump, nozzles, and other components.

N82348-UN-13NOV08

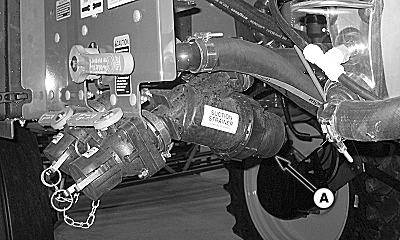

Left-hand Side—Fill Strainer

N98477-UN-08MAY12

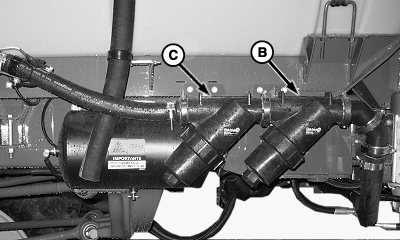

Right-hand Side—Solution Strainers

A - Fill Strainer (16 Mesh)

B - Solution Strainer (50 Mesh)

C - Solution Strainer (80 Mesh)

Remove and clean strainers screens to maintain solution flow. See Clean Fill Strainer in Service—As Required Section, and Clean Solution Strainers in Service—Daily or Every 10 Hours.

IMPORTANT: Always install the 80 mesh screen in the solution strainer (C).
