Adjust Front Axle Toe-In

1. Loosen clamp (A).

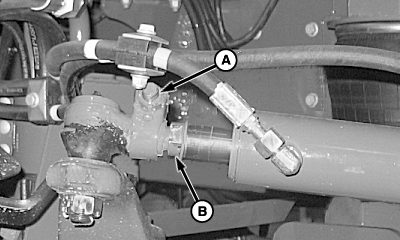

   N83112-UN-17JUN09

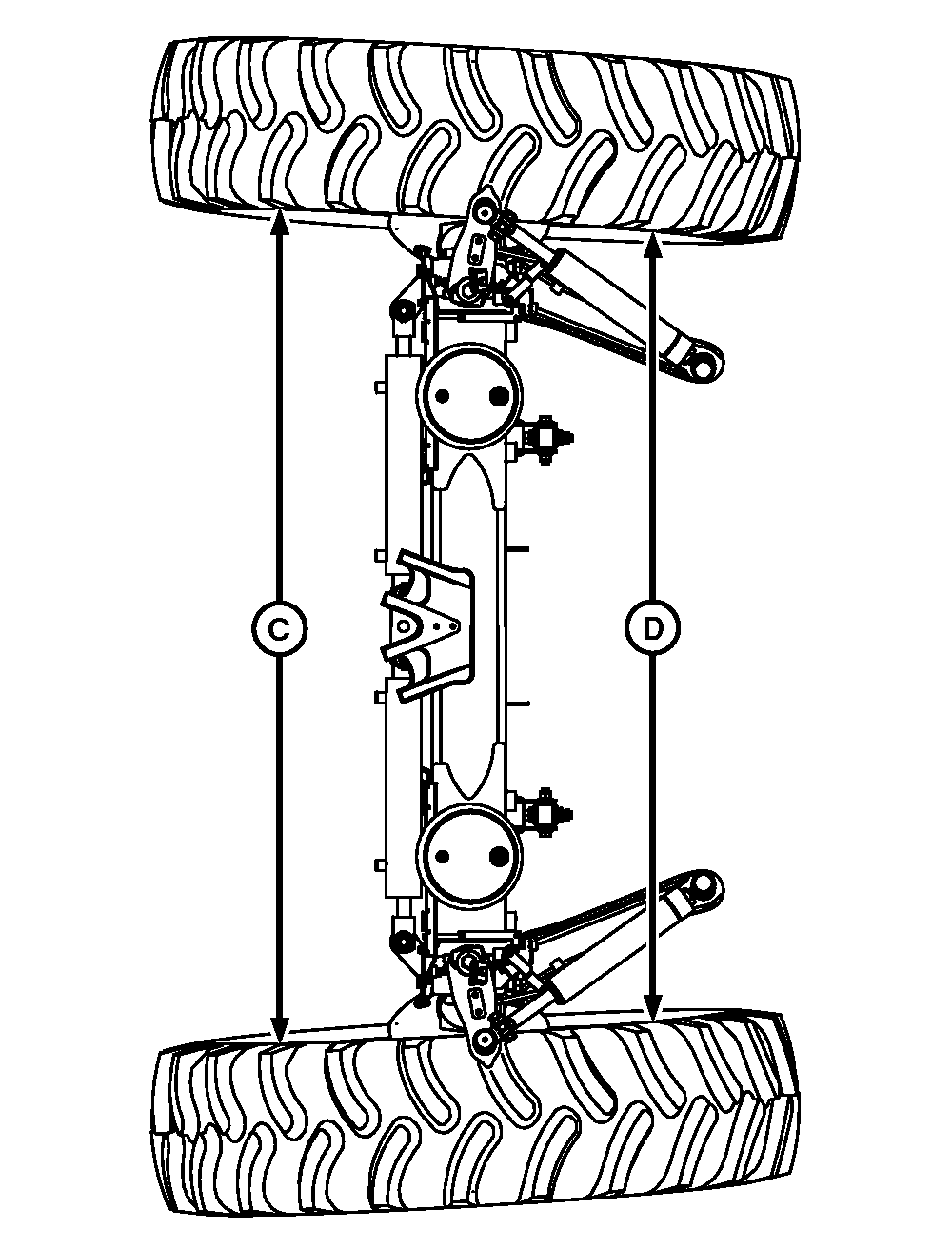

   N83111-UN-04MAR09

   A - Clamp

   B - Cylinder Rod

   C - Dimension

   D - Dimension

---




2. Adjust cylinder length by turning cylinder rod (B).

3. Repeat steps 1 and 2 for the opposite side of machine.

4. Move left-hand and right-hand tires evenly until difference between (C and D) are within specified range.

   Item	Measurement	Specification
   Front Wheels	Toe-In	10—25 mm (3/8—1 in)

   NOTE: With cylinders at half stroke, dimension (D) should be 10—25 mm (3/8—1 in) less than dimension (C).

5. Tighten clamp on each side of machine.

6. Check the front axle toe-in. (See Check Front Axle Toe-In in Service—Every Year Section.)
