Clean Aspirators, Nozzle Bodies, and Tips

CAUTION: Spray system can contain hazardous material which can cause serious injury or death to you or others. Wear protective clothing, eyewear, and gloves. Drain the solution and clean the components in an area where people, animals, vegetation, and water supply, cannot be contaminated. Only drain the solution into a suitable container.

1. Relieve the spray boom pressure. (See Relieve Spray Boom Pressure in Operating the Sprayer Section.)

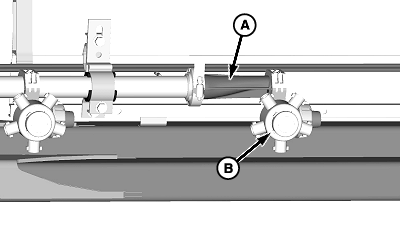

2. Remove the aspirator (A), the nozzle body (B), or the tip.


   N118272-UN-23JUN15

   A - Aspirator

   B - Nozzle Body

   NOTE: Place a suitable container under the component before remove it.

---




3. Clean components of chemical deposits.

   NOTE: Soak components in cleaning solution to dissolve chemical residue if needed.

4. Install all previously removed components and check for leaks.
