Check Hydrostatic/Hydraulic Oil Level

NOTE: Place spray booms on the rests and retract all hydraulic cylinders including tread adjust cylinders.

NOTE: Check oil level with cold engine.

  1. Park the machine on level ground.

  2. Check the oil level on the sight glass (B): it should be one-half to three-quarters full.

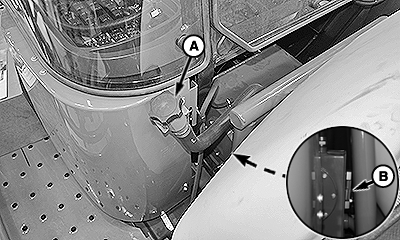

    BM026557
    BM026557-UN-02OCT17

    A - Filler Neck

    B - Sight Glass


  3. If the oil level is out of the specified, add the specified hydrostatic/hydraulic oil via filler neck (A). (See Fuels, Lubricants, and Coolant section.)

TS95756,00007DC-19-20180917
