Spray with Outer Spray Boom Sections Folded

1. Fold outer spray boom sections. (See Fold Spray Boom or Fold Spray Boom in Limited Height Area [if necessary] in this Section).

2.
   BM018104-UN-26SEP18

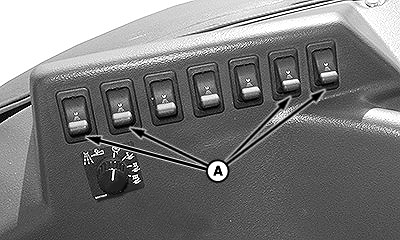

   Turn off the L3, L2, R2, and R3 sections switches (A). The spray boom and the SprayStar™ system are now ready to spray with the Outer Spray Boom Sections Folded.

   NOTE: The L3 and R3 sections correspond to the breakaway and part of the outer spray boom section. The L2 and R2 sections correspond to the other part of the outer spray boom section.

   NOTE: The rate control adjustment is automatic.

---




3. To spray with the entire spray boom again:

   1. Unfold the spray boom. (See Unfold Spray Boom or Unfold Spray Boom in Limited Height Area [if necessary] in this section.)

   2. Turn on the L3, L2, R2, and R3 sections switches (A).
