Spray with One Side of the Spray Boom Folded

1. Turn off the right-hand side sections (B) or the left-hand side sections (A) as required.

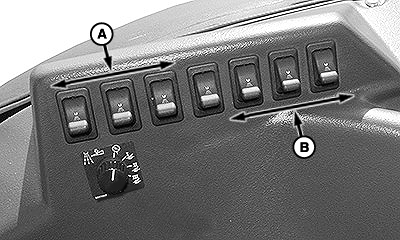

   BM026939-UN-28FEB18

   A - Left-Hand Side Sections

   B - Right-Hand Side Sections

   NOTE: If the side of the spray boom to be folded is the right-hand side, the sections (B) must be turned off. If the side of the spray boom to be folded is the left-hand side, the sections (A) must be turned off.

---




2. Fold the right-hand side or the left-hand side of the spray boom as desired. (See Fold Spray Boom or Fold Spray Boom in a Limited Height Area [if necessary] in this section.)

   IMPORTANT: This spray mode is not recommended for a long spraying time. Damages to the machine can occur.

3. To spray with the entire spray boom again:

   1. Unfold the spray boom. (See Unfold Spray Boom or Unfold Spray Boom in Limited Height Area [if necessary] in this section.)

   2. Turn on the right-hand side sections (B) and the left-hand side sections (A).
