Fold Spray Boom

CAUTION: Avoid injury or death to others. Make sure no one is standing near the spray boom when folding to transport position.

IMPORTANT: Do not drive with the spray boom fully raised. Damage to lift system may occur in those conditions.

IMPORTANT: Make sure that the spray boom is in the lowest position and leveled with the ground before performing this procedure.

1.
   BM026953-UN-05MAR18


   BM026950-UN-02MAR18

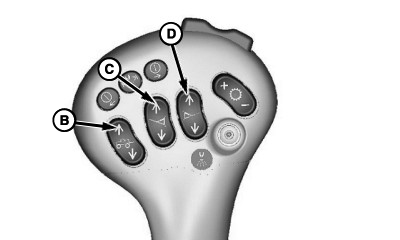

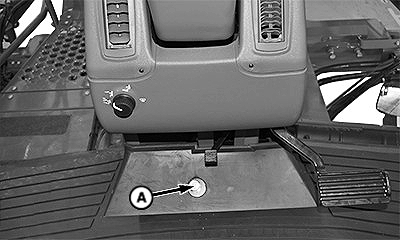

   Press and hold spray boom fold mode switch (A) down while pressing top of the left fold/level switch (C) and the right fold/level switch (D) to fold both sides of the outer spray boom sections completely.

   NOTE: When using the fold mode switch (A), the fold/level switch (B) can be used to operate both sides of spray boom simultaneously.

---




2. Release all the switches.

3. Press the top of the left fold/level switch (C) and the right fold/level switch (D) to tilt the spray boom to the maximum level.

4.
   BM026968-UN-07MAR18

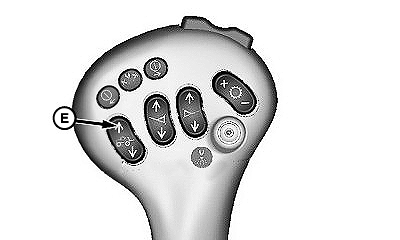

   Press the top of the central frame raise/lower switch (E) to raise the spray boom to the highest position.

---




5. Press and hold spray boom fold mode switch (A) down while pressing top of the left fold/level switch (C) and the right fold/level switch (D) to fold both sides of the inner spray boom sections.

6. Release all the switches.

7.
   BM026954-UN-05MAR18

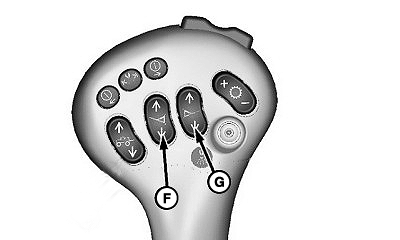

   With the inner spray booms completely folded, press bottom of the left fold/level switch (F) and right fold/level switch (G) to level the spray booms onto the rests.

   IMPORTANT: Do not lower center frame when the spray boom is above the rests/cradle or damage to the spray boom will occur.

---
