Resetting Service Interval Counter

Service interval statements appear on the bottom of the Sprayer Main Page after a service interval has expired. The service interval statement informs the operator that the time has expired since the last service was performed. The service intervals that SprayStar™ monitors are 50, 100, 250 and 500 hours.

When a service interval statement appears on bottom of Sprayer Main Page, the operator should perform the service as soon as possible and then reset the service interval counter.

To reset a service interval counter:

1. Verify that key switch is ON.

2.

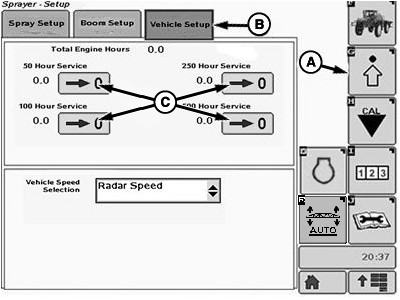

   BM030624-UN-08NOV17

   Select the Setup softkey (A) to view the setup menu.

---




3. Select the Vehicle Setup tab (B).

4. When a service interval has been reached and service has been completed, push appropriate button (C) next to the time interval to reset the interval counter for the service performed.

   NOTE:

   • See Lubrication and Maintenance section in this manual for items to be serviced and their service intervals
   • SprayStar™ will not produce a service interval statement on the Sprayer Main page until a service interval expires.
