Setup BoomTrac Pro™ Sensors

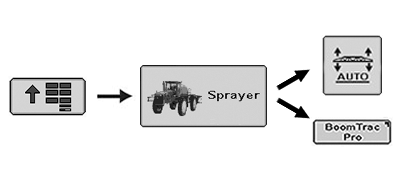

BM030717-UN-23NOV17

Menu Button → Sprayer Application Button → BoomTrac Pro™ Softkey or BoomTrac Pro™ Button

1. Select Menu button.

2. Select Sprayer Application button.

3. Select BoomTrac Pro™ softkey or BoomTrac Pro™ button.

4.

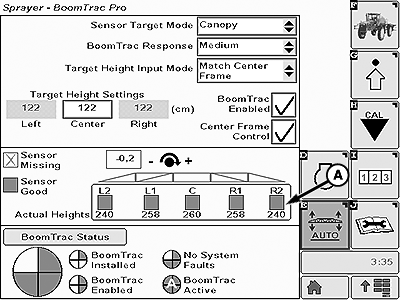

   BM030719-UN-23NOV17

   Select Boom Section softkey (A) on BoomTrac Pro™ Setup Page to access BoomTrac Pro™ Sensor Setup Page.

---




5.

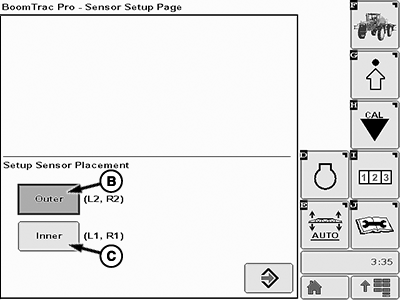

   BM030720-UN-23NOV17

   Select the Outer softkey (B) to access the Outer Sensor Placement Page.

---




6.

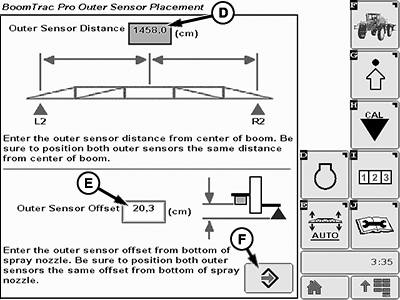

   BM030721-UN-23NOV17

   Set the outer sensor distance in the input box (D) and the outer sensor offset in the input box (E):
   • Outer Sensor Distance (D)—Set the distance from the center of the suspended center frame to the center of the outer BoomTrac Pro™ height sensor. NOTE: The default value is the recommended placement for the location of the sensor. For three sensor system BoomTrac Pro™ height sensors can be placed at inner Right 1, Left 1 positions or Right 2, Left 2 position.

   • Outer Sensor Offset (E)—Set the vertical distance from the bottom of the outer BoomTrac Pro™ height sensor to the bottom of the spray nozzle. NOTE: This value only is changed if a different bracket is used or placement of the sensor on the boom is changed.




---




7. Touch the button (F) to return to BoomTrac Pro™ Sensor Setup Page.

8. NOTE: Inner Sensor Placement softkey (C) only available on five sensor systems.

   Select the Inner softkey (C) to access the Inner Sensor Placement Page.

9.

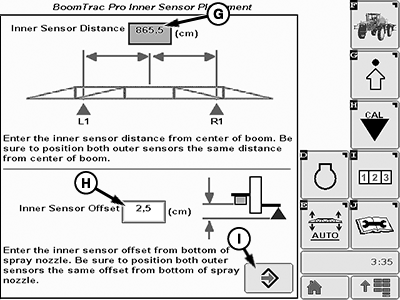

   BM030722-UN-23NOV17

   Set the inner sensor distance in the input box (G) and the inner offset distance in the input box (H).
   • Inner Sensor Distance (G)—Set the distance from the center of the suspended center frame to the center of the inner BoomTrac Pro™ height sensor. NOTE: The default value is the recommended placement for the location of the sensor. For three sensor system BoomTrac Pro™ height sensors can be placed at inner Right 1, Left 1 positions or Right 2, Left 2 position.

   • Inner Sensor Offset (H)—Set the vertical distance from the bottom of the inner BoomTrac Pro™ height sensor to the bottom of the spray nozzle NOTE: The offset of inner sensor must be 0 because the sensor faces the bottom of the spray nozzle.




---




10. Touch the button (I) to return to BoomTrac Pro™ Sensor Setup Page.
