Calibrate Boom Level Position

NOTE: Calibrating Boom Height Sensors need be done before any other changes or calibrations are performed.

NOTE: This procedure calibrate the Roll Sensor, the Roll Sensor obtains the slope value of the bar in degrees.

BM030725-UN-23NOV17

Menu Button → Sprayer Application Button → Calibration Softkey

1. Select Menu button.

2. Select Sprayer Application button.

3.

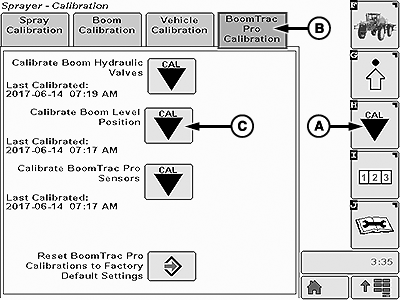

   BM030728-UN-23NOV17

   Select Calibration softkey (A).

---




4. Select the BoomTrac Pro™ Calibration tab (B).

5. Select Calibrate Boom Level Position icon (C) to access Calibrate Boom Level Position screen.

6. Follow calibrate boom level position instructions.

7.

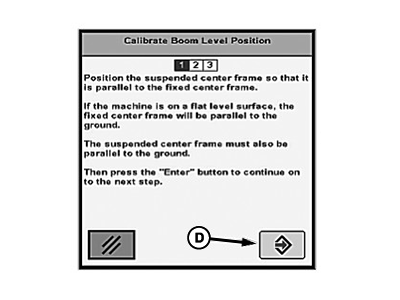

   BM030729-UN-23NOV17

   When finished each instruction select Enter button (D) to proceed to next instruction screen.

---




8. When finished all instruction this text is displayed: BoomTrac Pro™ boom level calibration is complete.
