Adjusting Channel Width

The forage harvester's and pickup's channel width must match.

Whenever necessary, channel width of pickup can be adapted to the narrow feeding channel (6000 series, 72XX - 75XX series) or to the wide feeding channel (77XX, 78XX series) of forage harvester.

Proceed as follows:

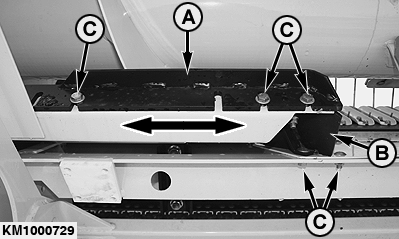

Loosen fixing screws (C).

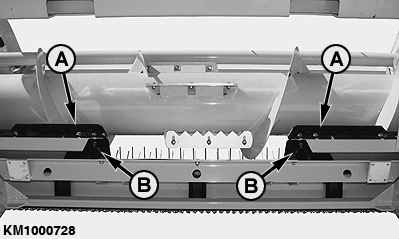

Set strippers (A) and deflectors (B) on both sides into the desired hole pattern, depending on attaching the pickup to a forage harvester with a wide or a narrow feeding channel.

Tighten fixing screws (C).

A-Strippers
B-Deflectors
C-Fixing screws
