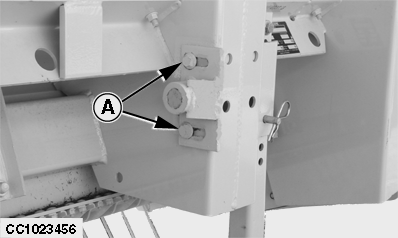

Adjusting Pickup Attaching Hole Supports (630C with Rigid Frame)1. Loosen pickup lower attaching hole support bolts (A) (2 on each side).2. Attach pickup to the harvester. (See Attaching the 630C Pickup in this Section.) 3. Fully raise the pickup and secure the harvester lift cylinders with the safety lock. (See your self propelled forage harvester Operator's Manual.)
4. Remove quick lock pin (E) (if equipped). Engage locking pins (B) in pickup attaching holes (C) by lifting and sliding bolts (D). Reinstall quick lock pin (E) (if equipped). 5. Tighten pickup lower attaching hole support bolts (A) (2 on each side). |
|
CAUTION:
Never put jackstand below the pickup to perform this adjustment.
KM00321,00000D6 -19-07JAN09-1/1 |
