Connecting Hydraulic Hoses

Single-acting hydraulic outlet

The harvester must be equipped with a single-acting hydraulic outlet to actuate the crop deflector or the roller compression unit (option).

Once the pickup has been securely attached to the cutterhead housing, connect hydraulic hose (A) to the single-acting hydraulic outlet (B).

Double-acting hydraulic outlet

The harvester must be equipped with a double-acting hydraulic outlet to actuate the hydraulically foldable gauge wheels (option for model 630C).

Once the pickup has been securely attached to the cutterhead housing, connect hydraulic hoses (C) to the double-acting hydraulic outlets (D).

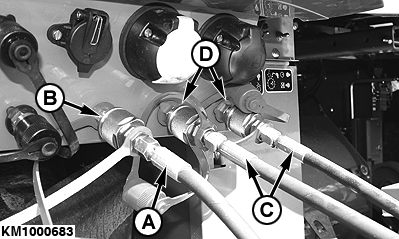

KM1000683


A-Hydraulic hose
B-Single-acting hydraulic outlet
C-Hydraulic hoses
D-Double-acting hydraulic outlets

KM00321,00000DC -19-13JAN09-1/1
