Setting Gauge Wheels in Transport Position

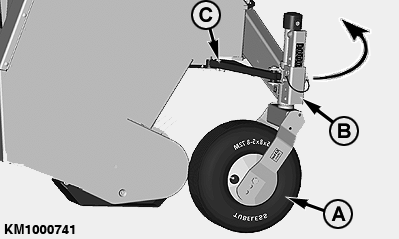

When transporting the pickup by road, always move the gauge wheels (A) inward and lock wheel supports (B) to the narrow track position.

1. Remove drilled pin (C) on both sides.

2. Move wheel supports (B) inward.


A-Gauge wheel
B-Wheel support
C-Drilled pin

KM1000741

KM00321,00000E4 -19-19JAN09-1/2

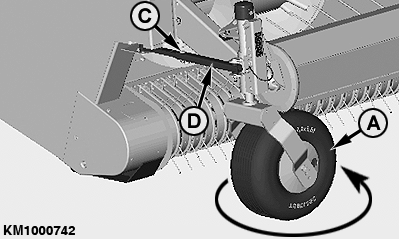

3. Turn gauge wheels (A) inward as shown until they are locked in transport position.

NOTE: Gauge wheels are automatically falling into transport position when turning gauge wheels inward.

4. Secure rods (D) with drilled pin (C).


A-Gauge wheel
C-Drilled pin
D-Rod
