Setting Roller Compression Unit in Operating Position (Option)

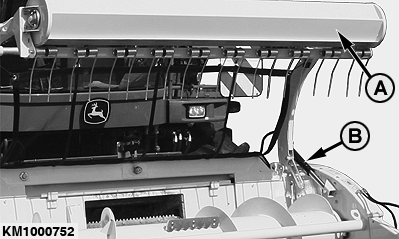

1. Fully extend cylinders (B) to raise roller compression unit (A).


A-Roller compression unit
B-Cylinder

KM1000752

KM00321,00000EC -19-21JAN09-1/4

2. Move the gauge wheels outwards into working position.

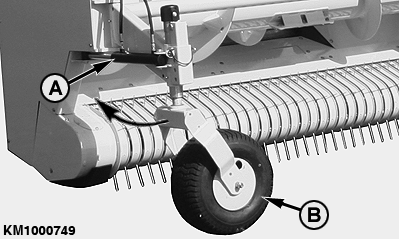

a. Hydraulically foldable gauge wheels (option)

Actuate hydraulic cylinders (A) and move gauge wheels (B) outward into operating position.


A-Hydraulic cylinder
B-Gauge wheel

KM1000749

KM00321,00000EC -19-21JAN09-2/4

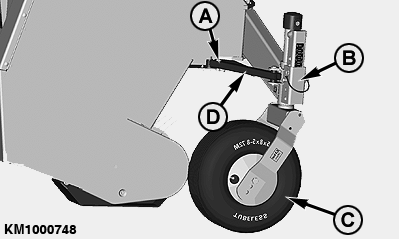

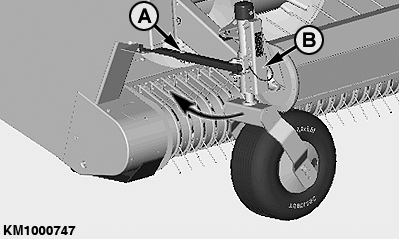

b. Standard gauge wheels:

Remove drilled pin (A) on both sides.

Move wheels supports (B) outward into operating position.

Secure rods (D) with drilled pin (A).


A-Drilled pin
B-Wheel support
C-Gauge wheel
D-Rod

KM1000747
KM1000748

KM00321,00000EC -19-21JAN09-3/4

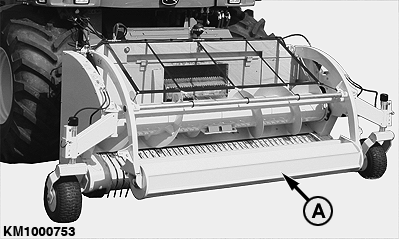

3. Slowly lower the roller compression unit (A).

NOTE: Gauge wheels are automatically unlocked and can turn freely when gauge wheels are lowered onto the ground.

Lower pickup onto the ground and drive forage harvester forward until gauge wheels are swiveled into driving direction.


A-Roller compression unit

KM1000753

KM00321,00000EC -19-21JAN09-4/4
