Adjusting Deflector Plate of Roller Compression Unit (Option)

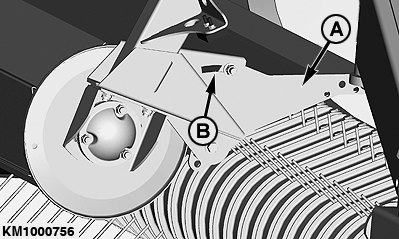

Position deflector plate (A) in the slot holes (B) on both sides in such a way that deflector plate (A) is always aligned parallel to the pickup cylinder.

NOTE: First position deflector plate (A) in the middle of slot hole (B). Check alignment to the pickup cylinder and adjust if necessary.

A-Deflector plate
B-Slot hole

KM00321,00000EF -19-03FEB09-1/1
