Adjusting Compensating Spring for Oscillating Frame (if equipped)

Adjust compensating spring (A) length to specification.

Specification

Compensating spring -Length between hooks 280 mm (11 in.)

Readjust compensating spring (A) length as required so that the pickup stays horizontal when it is raised.

Firmly tighten nuts (B).

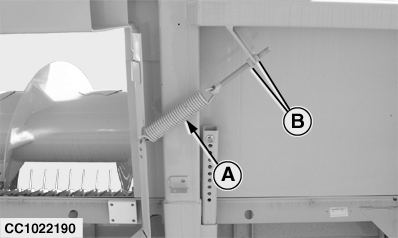

CC1022190


A-Compensating spring
B-Nuts

KM00321,00000F4 -19-23JAN09-1/1
